Example code — Reliable autocatalytic operation with a finite fuel–waste bath: joint mission guarantees, reservoir sizing and a sharpened certificate

As an autocatalytic reactor consumes a finite fuel supply and accumulates waste, its reaction rates change. This example carries fuel and waste as actual inventories, updating them at every driven event and preserving the returned bath between interventions.

The package provides a twenty-channel count reactor, molecular pulses, a history-dependent controller, finite metered food, a density model and explicit mission-sizing tools. Separate ledgers track overlapping collected outputs, food, gross turnover, signed fuel conversion and net template synthesis. Inputs and illustrative physical reference choices are collected at the top of the driver.

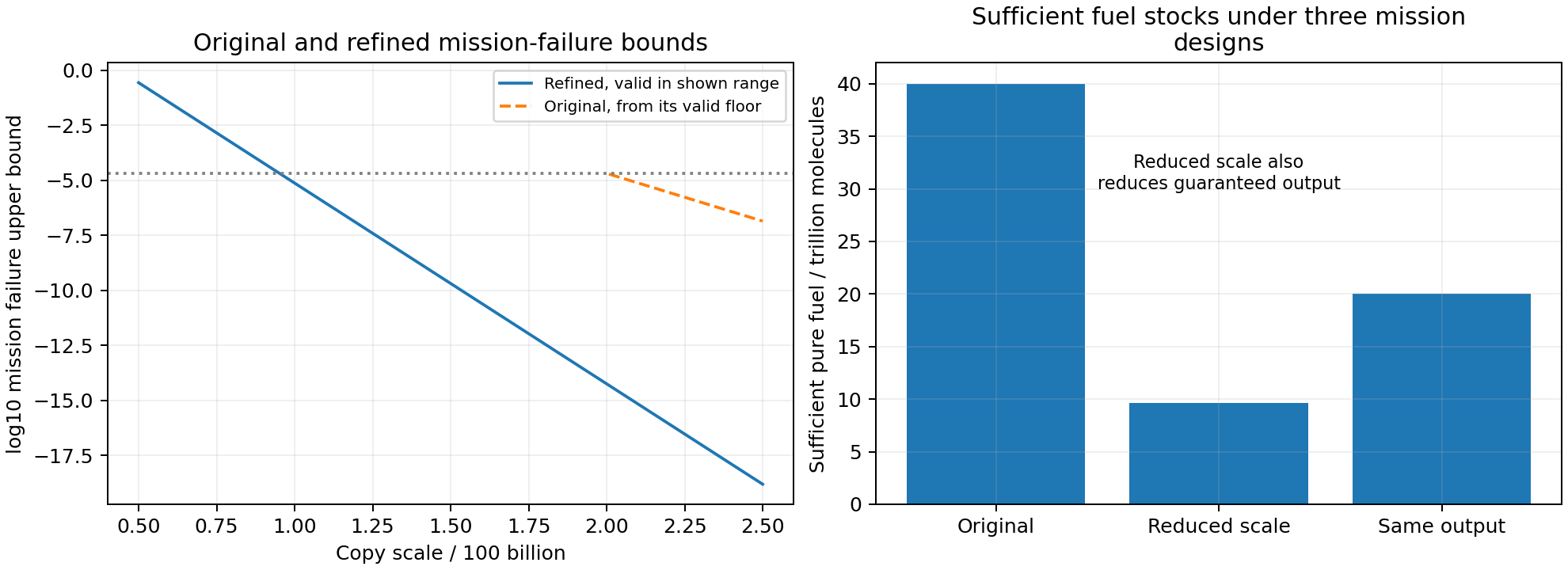

The refined phase exponent improves mission confidence; sufficient reservoirs are compared at reduced scale and at fixed output. — These are evaluations of proved sufficient bounds. Each phase curve is shown within its envelope's stated domain. Reducing reactor scale also reduces the promised output.

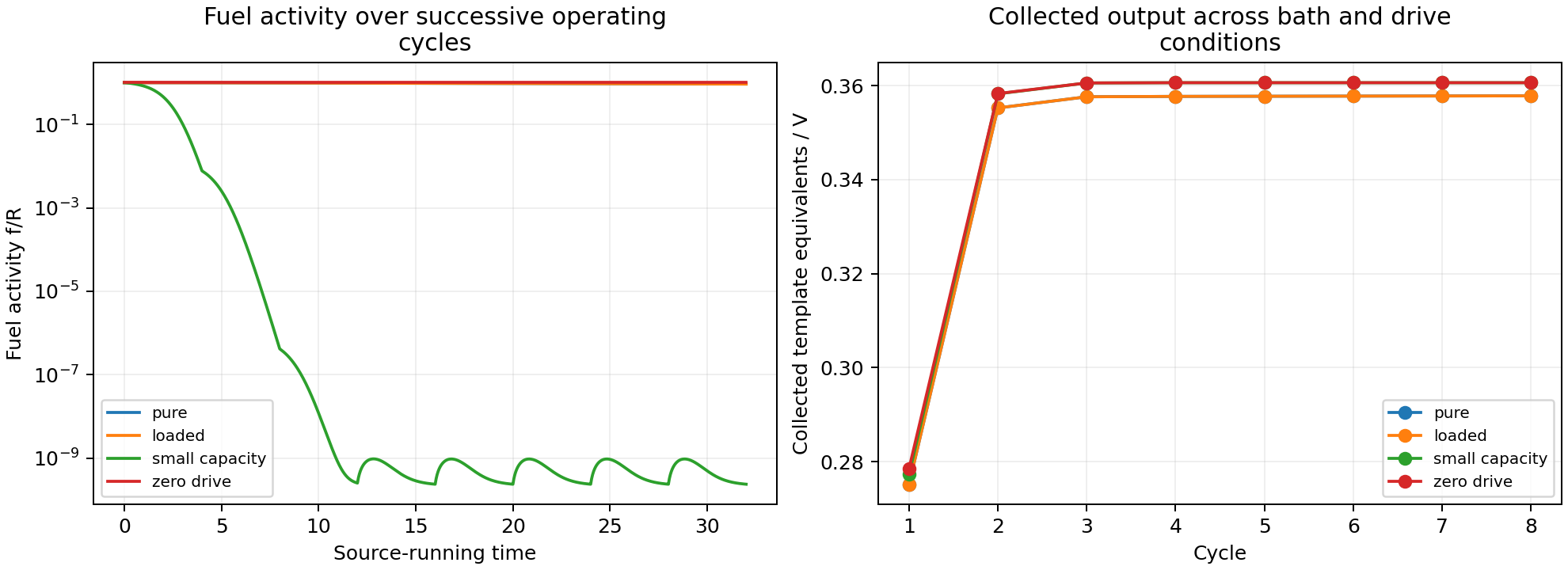

Fuel activity evolves without replenishment, while pure, loaded, small-capacity and zero-drive density reactors continue collecting template equivalents. — Deterministic mass-action diagnostics with the actual evolving bath. Positive output with zero drive shows why productive operation is not a positive net fuel-consumption theorem.

Fresh arithmetic reproduces the refined hundred-cycle certificate at 96 billion reactor copy units and 9.6 trillion fuel molecules. The two improvements preserve more of the phase exponent and use the fact that fuel loss and waste accumulation are linked. Keeping the original output demand instead retains the larger reactor scale while improving confidence and halving the sufficient pure-bath reservoir.

The half-size service allowance applies only to total bath inventory equal to reference capacity and drive rate 1/50. Loaded baths retain the larger allowance. The example checks all-event bath accounting, neighboring-state detailed balance and exact endpoint free-energy formulas, and demonstrates shutdown when a finite food meter cannot fund a requested delivery.

Production is not proof of fuel consumption: the deterministic zero-drive run still delivers output. Those trajectories and the small-count sample illustrate the mechanism; the probability theorem is imported from the paper and its arithmetic is freshly evaluated. All 92 source checks are replayed. Lean is not rerun.

Python source

"""Finite-bath missions: reusable count/density reactors and explicit sizing."""
COPY_SCALE = 96_000_000_000
MISSION_CYCLES = 100
FAILURE_TARGET = '21/1000000'
BATH_TOLERANCE = '1/10'
TEMPLATE_DEMAND = 0
FREE_TEMPLATE_DEMAND = 0
RELEASE_RATE = '20'
DRIVE_RATE = '1/50'
DENSITY_CYCLES = 8
RETENTION = '1/4'
SURVIVAL = ('49/50',)*6
REFILL_ERRORS = ('-1/200','-1/200')
SMALL_COPY_SCALE = 300
SMALL_CYCLES = 3
SMALL_BATH_CAPACITY = 3000
SMALL_EVENT_BUDGET = 100000
RANDOM_SEED = 760023
REFERENCE_MOLAR = '1/1000'
BATH_REFERENCE_MOLAR = '1/1000'
TIME_UNIT_SECONDS = '60'
MANUSCRIPT_SHA256 = '5627f554fdb4e90cf31a8f38761fd154b3d9c13f3e8d712819e81c462c9c9a5f'

import argparse,csv,hashlib,json,platform
from pathlib import Path
from fractions import Fraction as Q
from math import ceil
import numpy as np
import scipy
from mpmath import mp,iv
from chemistry import Intervention,dot,A,B,I,Y
from finite_bath import Bath,FiniteBathReactor,DensityMission,CountMission,HistoryController,FoodMeter
from certificates import MissionCertificate,design,loaded_force_capacity,bath_energy,neighbour_balance,KAPPA,exp_lower
import paper_checks


def main():
    parser=argparse.ArgumentParser(description=__doc__);parser.add_argument('--output',type=Path,default=Path('outputs'));out=parser.parse_args().output;out.mkdir(parents=True,exist_ok=True)
    def dump(name,value):(out/name).write_text(json.dumps(value,indent=2,default=str)+'\n')
    def table(name,rows):
        with (out/name).open('w',newline='') as f:w=csv.DictWriter(f,fieldnames=list(rows[0]));w.writeheader();w.writerows(rows)
    if not 0<Q(BATH_TOLERANCE)<1:raise ValueError('Bath tolerance must lie in (0,1).')
    reactor=FiniteBathReactor(RELEASE_RATE,DRIVE_RATE);R=max(1,ceil(Q(MISSION_CYCLES*(COPY_SCALE//10))/Q(BATH_TOLERANCE)));bath=Bath(R,R,0)
    cert=MissionCertificate(COPY_SCALE,reactor,bath,sharp=True)
    dump('configured_mission.json',dict(certificate=cert.evaluate(MISSION_CYCLES),inventory=cert.inventory(MISSION_CYCLES),all_free_seed_inventory=cert.inventory(MISSION_CYCLES,COPY_SCALE),bath_capacity=R,scope='Configured certificate requires the pure-total sharp-service class. No count simulation at this scale.'))
    requested=design(MISSION_CYCLES,FAILURE_TARGET,BATH_TOLERANCE,TEMPLATE_DEMAND,FREE_TEMPLATE_DEMAND);dump('inverse_design.json',requested)
    comparisons=[]
    for tag,V,refined,sharp in [('original',200000000000,False,False),('refined_reduced',96000000000,True,True),('refined_same_output',200000000000,True,True)]:
        c=MissionCertificate(V,FiniteBathReactor(),Bath(1,1,0),refined,sharp);inventory=c.inventory(100,V)
        comparisons.append(dict(case=tag,certificate=c.evaluate(100),inventory=inventory,reservoir=10*inventory['gross_service_allowance']))
    dump('canonical_comparison.json',comparisons)
    fixed=design(100,FAILURE_TARGET,BATH_TOLERANCE,357142857200,18518518600);dump('fixed_output_design.json',fixed)
    loaded=MissionCertificate(COPY_SCALE,reactor,Bath(R,R,R),sharp=False);loaded_inventory=loaded.inventory(MISSION_CYCLES)
    dump('loaded_bath_design.json',dict(certificate=loaded.evaluate(MISSION_CYCLES),inventory=loaded_inventory,capacity_for_ten_percent=10*loaded_inventory['gross_service_allowance'],capacity_for_force_01=loaded_force_capacity(loaded_inventory['gross_service_allowance'],'1/10'),scope='Loaded bath uses floor(V/5), not the pure bath floor(V/10); phase refinement still applies. Force capacity uses its actual gross allowance.'))
    dump('paper_arithmetic_replay.json',paper_checks.payload)
    pulse=Intervention(RETENTION,SURVIVAL,REFILL_ERRORS);c2=Q(1,28);initial=[Q(159,160)-2*c2,Q(159,160)-2*c2,0,0,c2,0]
    cases=[];summaries=[]
    for name,sigma,total,d in [('pure',1,1,DRIVE_RATE),('loaded',1,2,DRIVE_RATE),('small_capacity',.001,1,DRIVE_RATE),('zero_drive',1,1,'0')]:
        r=FiniteBathReactor(RELEASE_RATE,d);experiment=DensityMission(r,sigma,total);res=experiment.run(initial+[1,total-1],DENSITY_CYCLES,pulse)
        check=experiment.run(initial+[1,total-1],DENSITY_CYCLES,pulse,method='BDF')
        error=float(np.max(np.abs(np.array([h['endpoint'] for h in res['history']])-np.array([h['endpoint'] for h in check['history']]))))
        summaries.append(dict(case=name,R_per_V=sigma,total_activity=total,drive=d,min_collected_I=min(h['counters']['collected_I'] for h in res['history']),min_collected_X=min(h['counters']['collected_X'] for h in res['history']),forward=sum(h['counters']['forward'] for h in res['history']),reverse=sum(h['counters']['reverse'] for h in res['history']),final_fuel=res['history'][-1]['endpoint'][6],max_inventory_residual=max(abs(h['inventory_residual']) for h in res['history']),max_bath_residual=max(abs(h['bath_residual']) for h in res['history']),solver_difference=error))
        cases.append(dict(case=name,**res));print('Density',name,'minimum collected I:',summaries[-1]['min_collected_I'],flush=True)
    dump('density_histories.json',cases);table('density_summary.csv',summaries)
    table('density_trajectories.csv',[dict(case=c['case'],**row) for c in cases for row in c['trajectory']])
    small=CountMission(reactor);init=(0,0,SMALL_COPY_SCALE,0,0,0);smallbath=Bath(SMALL_BATH_CAPACITY,SMALL_BATH_CAPACITY,0)
    sample=small.run(init,SMALL_COPY_SCALE,smallbath,SMALL_CYCLES,HistoryController(),RANDOM_SEED,SMALL_EVENT_BUDGET,FoodMeter(5*SMALL_CYCLES*SMALL_COPY_SCALE+1,5*SMALL_CYCLES*SMALL_COPY_SCALE+1));dump('small_count_mission.json',sample)
    shortage=small.run(init,SMALL_COPY_SCALE,smallbath,SMALL_CYCLES,HistoryController(),RANDOM_SEED,SMALL_EVENT_BUDGET,FoodMeter(1,1));dump('metered_shutdown.json',shortage)
    checks=[]
    for f,p in [(0,100),(40,60),(100,0)]:
        b=Bath(100,f,p);N=(20,30,10,3,4,5);V=100
        assert reactor.exact_drift(N,V,b,A)==V-dot(A,N) and reactor.exact_drift(N,V,b,B)==V-dot(B,N)
        checks.append(dict(f=f,p=p,material_A=str(reactor.exact_drift(N,V,b,A)),material_B=str(reactor.exact_drift(N,V,b,B)),forward=str(reactor.propensities(N,V,b)[18]),reverse=str(reactor.propensities(N,V,b)[19])))
    dump('generator_and_boundary_checks.json',checks)
    thermo=[bath_energy(10,J) for J in [0,1,5,10]]+[bath_energy(10,J,True) for J in [-10,-1,0,1,10]]+[bath_energy(R,R//10)]
    dump('bath_endpoint_free_energy.json',thermo);dump('neighbour_detailed_balance.json',[neighbour_balance((2,3,4,0,0,0),100,Bath(10,10,0),reactor),neighbour_balance((2,3,4,0,0,0),100,Bath(10,4,6),reactor)])
    # Full channel-specific quadratic variation, as a diagnostic for the paper's
    # proposed next refinement. No new probability theorem is inferred.
    w=(0,0,Q(1,10),Q(1,20),Q(1,50),Q(1,8));N=(20,30,10,3,4,5);b=Bath(100,40,60)
    terms=[a*dot(w,c.jump)**2 for a,c in zip(reactor.propensities(N,100,b),reactor.internal.channels)]
    dump('channel_quadratic_variation.json',dict(state=N,V=100,weights=w,by_label=terms,total=sum(terms),scope='Exact local diagnostic, not a replacement for the proved phase envelope.'))
    NA=Q(602214076000000000000000);c=Q(REFERENCE_MOLAR);cb=Q(BATH_REFERENCE_MOLAR);tau=Q(TIME_UNIT_SECONDS)
    if min(c,cb,tau)<=0:raise ValueError('Positive physical reference choices required.')
    dump('dimensional_reading.json',dict(reactor_nL=float(Q(COPY_SCALE)/NA/c*10**9),bath_nL=float(Q(R)/NA/cb*10**9),source_minutes=float(4*MISSION_CYCLES*tau/60),scope='Illustrative reference choices, not chemical calibration; the separated-bath contact rate requires its own convention.'))
    plot(out,cases,summaries,comparisons)
    print('Source arithmetic checks:',paper_checks.payload['total'],'; count diagnostic:',sample['status'],sample.get('all_sharp_success'),flush=True)
    print('Configured certified joint lower:',cert.evaluate(MISSION_CYCLES)['joint_product_lower_rational'],flush=True)
    print('Fuel is carried forward and both directions are counted. Productive output is not a lower bound on fuel consumption. Imported process theorem; Lean not rerun.',flush=True)
    here=Path(__file__).parent;digest=lambda p:hashlib.sha256(p.read_bytes()).hexdigest()
    dump('run_metadata.json',dict(manuscript_sha256=MANUSCRIPT_SHA256,source_sha256=digest(Path(__file__)),python=platform.python_version(),numpy=np.__version__,scipy=scipy.__version__,module_sha256={p.name:digest(p) for p in sorted(here.glob('*.py')) if p.name not in ['example.py','test_example.py']},input_sha256={p.name:digest(p) for p in sorted(here.glob('*.json')) if p.name!='release.json'},output_sha256={p.name:digest(p) for p in sorted(out.iterdir()) if p.is_file() and p.name!='run_metadata.json'}))


def plot(out,cases,summaries,comparisons):
    import matplotlib
    matplotlib.use('Agg')
    import matplotlib.pyplot as plt
    fig,axs=plt.subplots(1,2,figsize=(11,4),layout='constrained')
    v=np.linspace(5e10,2.5e11,200);axs[0].plot(v/1e11,(np.log(10100)-float(KAPPA)*v)/np.log(10),label='Refined, valid in shown range');valid=v>=2e11;axs[0].plot(v[valid]/1e11,(np.log(10100)-v[valid]/1e10)/np.log(10),'--',label='Original, from its valid floor');axs[0].axhline(np.log10(21e-6),color='gray',ls=':');axs[0].set(xlabel='Copy scale / 100 billion',ylabel='log10 mission failure upper bound',title='Original and refined mission-failure bounds');axs[0].legend(fontsize=8)
    axs[1].bar(['Original','Reduced scale','Same output'],[r['reservoir']/1e12 for r in comparisons]);axs[1].set(ylabel='Sufficient pure fuel / trillion molecules',title='Sufficient fuel stocks under three mission\ndesigns');axs[1].text(1,30,'Reduced scale also\nreduces guaranteed output',ha='center',fontsize=9)
    for a in axs:a.grid(alpha=.2)
    fig.savefig(out/'mission_resource_design.png',dpi=180);fig.savefig(out/'mission_resource_design.svg');plt.close(fig)
    fig,axs=plt.subplots(1,2,figsize=(11,4),layout='constrained')
    for c in cases:
        axs[0].semilogy([r['time'] for r in c['trajectory']],[r['fuel_activity'] for r in c['trajectory']],label=c['case'].replace('_',' '))
        axs[1].plot([r['cycle'] for r in c['history']],[r['counters']['collected_I'] for r in c['history']],'o-',label=c['case'].replace('_',' '))
    axs[0].set(xlabel='Source-running time',ylabel='Fuel activity f/R',title='Fuel activity over successive operating\ncycles');axs[1].set(xlabel='Cycle',ylabel='Collected template equivalents / V',title='Collected output across bath and drive\nconditions')
    for a in axs:a.grid(alpha=.2);a.legend(fontsize=8)
    fig.savefig(out/'finite_bath_operation.png',dpi=180);fig.savefig(out/'finite_bath_operation.svg');plt.close(fig)


if __name__=='__main__':main()

Run output

Density pure minimum collected I: 0.27521524783745266
Density loaded minimum collected I: 0.2752152478501901
Density small_capacity minimum collected I: 0.27726598538345304
Density zero_drive minimum collected I: 0.27857935727110594
Source arithmetic checks: 92 ; count diagnostic: complete False
Configured certified joint lower: 999982722842819/1000000000000000
Fuel is carried forward and both directions are counted. Productive output is not a lower bound on fuel consumption. Imported process theorem; Lean not rerun.
