Example code
In a polymer reactor, other catalytic reactions can disrupt a selected autocatalyst while still generating exportable material. The paper's mechanism ensures either that autocatalyst grows or that enough nonfood material accumulates to be exported by washout.
The reusable reactor builds every ordered reversible split, combines repeated substrate and catalyst roles, and tracks feed, stocks, export and signed synthesis. It includes a density ODE, a literal finite-count simulator, and the proof's growth measure that retains only selected contributions. Reactions that increase the selected catalyst stay in the chemistry even when their positive fluctuations are omitted from this mathematical measure.

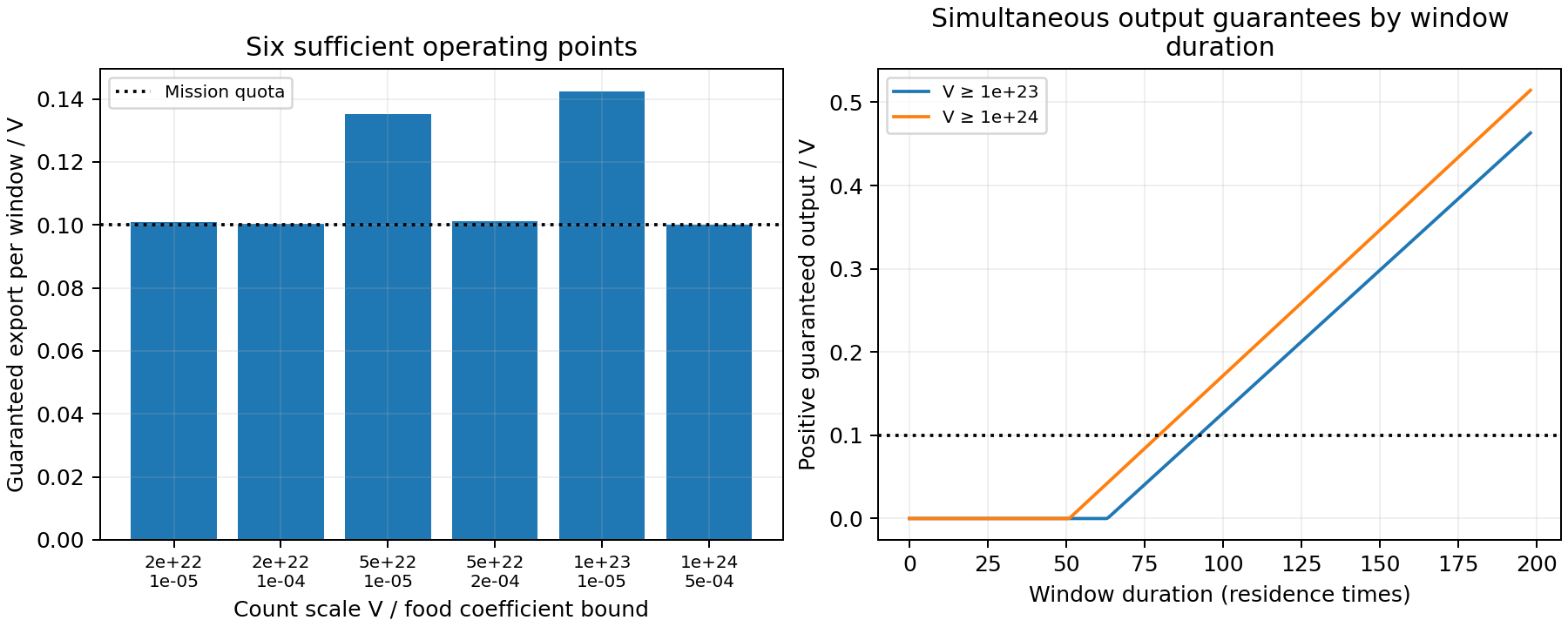

At the headline count scale V = 2 × 10²², the code reproduces a quota above 0.10103 V in each window and a conditional failure bound below 2.87 × 10⁻¹¹. Exact rational calculations keep establishment, guard, reward, export and feed errors separate. The all-window version gives simultaneous guarantees across the horizon; the numerical planning table shows how quota and confidence trade off.

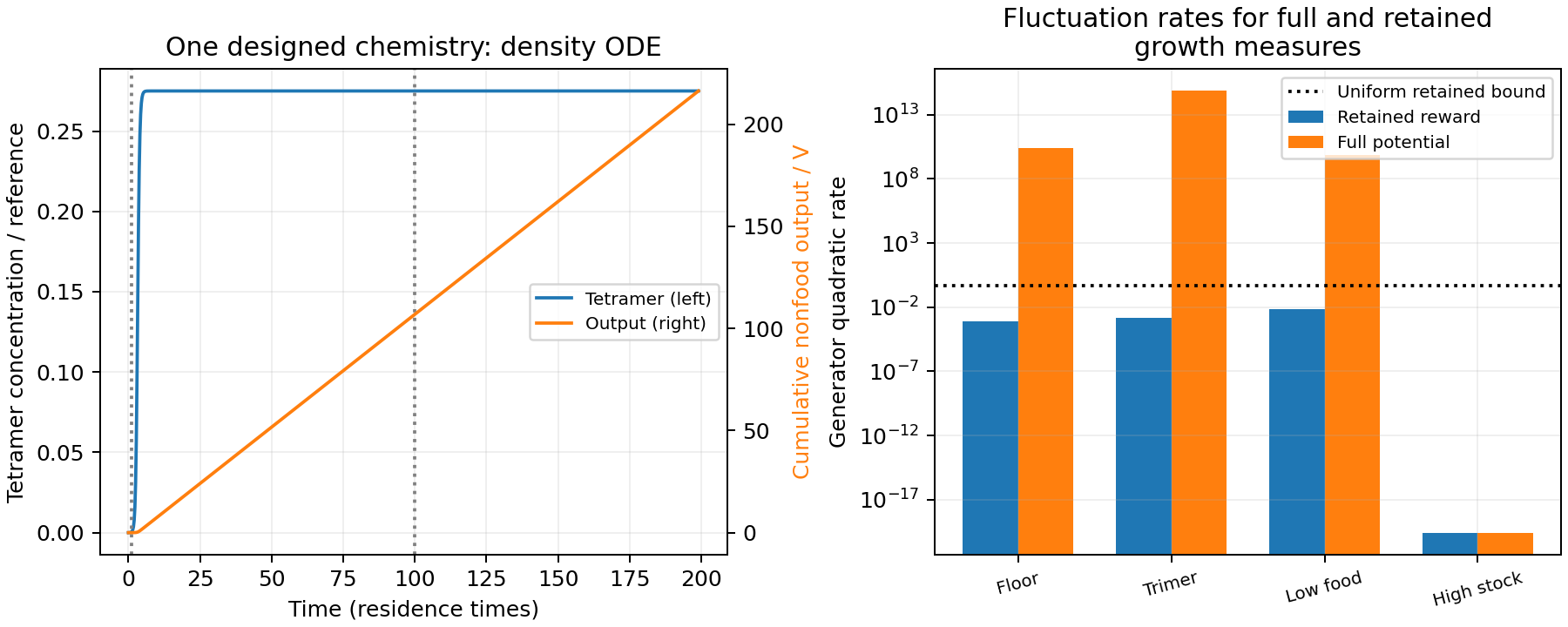

A dense-background generator panel demonstrates the variance reduction directly. A designed deterministic reactor exposes the material account, while the optional small-count stochastic run records a failed mission without treating it as evidence against the much larger sufficient scale. Neither illustration substitutes for the manuscript's stochastic proof.
The package also separates the probability of acquiring a suitable random chemistry from the reliability of operating it, and converts aggregate output to a calibrated readout only when every exported species is covered. Collected nonfood monomer is not a purified or functional product. Inputs are synthetic, the scalar bounds are freshly checked, and Lean is not rerun.
Python source
"""Finite-time polymer reactor output, retained rewards and exact error budgets."""
from pathlib import Path
from fractions import Fraction as F
import argparse
import csv
import hashlib
import json
import math
import platform
import numpy as np
from polymer import PolymerCatalogue,PolymerReactor,CatalyticAssignment,RetainedReward,FOOD,SELECTED
from certificate import ReactorCertificate,source_mass_alpha2_n4,readout_floor
# EDITABLE INPUTS. Dimensionless time = residence times; concentration = reference scale.
MAX_WORD_LENGTH=4
COUNT_SCALE=2*10**22
FOOD_CATALYSIS_BOUND=F(1,100000)
REWARD_ALLOWANCE=F(48)
BASAL_COEFFICIENT=2e-9
SELECTED_COEFFICIENT=4.
DESIGNED_BACKGROUND=() # e.g. ('010', ('00','11','0011'), 16.) inside this tuple
DESIGNED_WEAK_FOOD=1e-5 # Every food catalyses every split at this coefficient.
REFERENCE_MOLAR=0.001
RESIDENCE_SECONDS=3600.
SSA_VOLUME=20 # Small-count diagnostic, far below the theorem scale.
SSA_SEED=55092026
SSA_EVENT_BUDGET=100000
MANUSCRIPT_SHA256='7d8ef88769b6d9fb3bb24d015352f39a001e752b76ceaade289523efc24a9601'
def generator_panel(catalogue,volume):
background=[]
for i,z in enumerate(catalogue.words):
if z in FOOD:continue
omitted=(i+1)%len(catalogue.splits)
if z=='0011' and catalogue.splits[omitted]==SELECTED:omitted=(omitted+1)%len(catalogue.splits)
for j,split in enumerate(catalogue.splits):
if j!=omitted and not(z=='0011' and split==SELECTED):background.append((z,split,16.))
# Diagnostic panel fixed at paper n=4. It is not exhaustive over assignments.
reactor=PolymerReactor(catalogue,CatalyticAssignment(8e-9,4.,tuple(background),1e-5))
cert=ReactorCertificate(volume,4);contract=cert.constants();reward=RetainedReward(volume);rows=[]
for label in ['floor','trimer_background','depleted_foods','large_selected']:
counts={z:volume if z in FOOD else 0 for z in catalogue.words};counts['0011']=cert.floor
if label=='trimer_background':counts['010']=volume//10
if label=='depleted_foods':counts['00']=counts['11']=volume//1000;counts['010']=volume
if label=='large_selected':counts['0011']=volume//100
row=reward.diagnostic(reactor,counts)
row.update(state=label,drift_lower=float(contract.drift)-624*row['nonfood'],variance_upper=float(contract.reward.variance_rate),jump_upper=float(contract.reward.jump_bound))
assert row['mass']<=11 and row['drift']>=row['drift_lower']-1e-8 and row['variance']<=row['variance_upper']*(1+1e-10)
assert abs(row['mass_drift']-(10-row['mass']))<1e-9 and abs(row['output_rate']-row['nonfood'])<1e-9
rows.append(row)
return rows
def main():
parser=argparse.ArgumentParser();parser.add_argument('--output',default='outputs');parser.add_argument('--simulate',action='store_true');args=parser.parse_args()
out=Path(args.output);out.mkdir(parents=True,exist_ok=True)
cert=ReactorCertificate(COUNT_SCALE,MAX_WORD_LENGTH,FOOD_CATALYSIS_BOUND)
configured=cert.evaluate(REWARD_ALLOWANCE)
rows=[]
for v,eta,z in [(2*10**22,F(1,10**5),48),(2*10**22,F(1,10**4),37),(5*10**22,F(1,10**5),40),
(5*10**22,F(2,10**4),37),(10**23,F(1,10**5),40),(10**24,F(5,10**4),8)]:
# Worst n allowed by each table row, so all smaller n are covered by the scalar monotonicity.
result=ReactorCertificate(v,v//10**8,eta).evaluate(F(z));rows.append(result)
allrows=[ReactorCertificate(v,v//10**9).evaluate(F(z),True) for v,z in [(10**23,26),(10**24,14)]]
source=source_mass_alpha2_n4();lower=F(187365,10**8)
assert source['witness_mass'][0]>lower
screening_pass=(1-lower*(1-F(1,10**10)))**1600 < F(1,20)
cat=PolymerCatalogue(MAX_WORD_LENGTH)
assignment=CatalyticAssignment(BASAL_COEFFICIENT,SELECTED_COEFFICIENT,DESIGNED_BACKGROUND,DESIGNED_WEAK_FOOD)
reactor=PolymerReactor(cat,assignment,float(FOOD_CATALYSIS_BOUND))
times=np.unique(np.r_[np.linspace(0,199,797),1.,100.,199.]);trajectory=reactor.deterministic(times)
size=len(cat.words);states=trajectory[:,:size];ledger=trajectory[:,size:];[email protected];[email protected]
residual=float(np.max(np.abs(nonfood+ledger[:,0]-ledger[:,3])))
assert residual<1e-7
i1,i100,i199=[int(np.searchsorted(times,t)) for t in [1,100,199]]
ode=dict(window_outputs=[float(ledger[i100,0]-ledger[i1,0]),float(ledger[i199,0]-ledger[i100,0])],
stock=[float(states[i,cat.index['0011']]) for i in [i1,i100,i199]],max_mass=float(mass.max()),
food_arrivals=float(ledger[-1,1]),nonfood_ledger_residual=residual,
interpretation='Deterministic density illustration of one specified chemistry; not finite-count startup evidence')
panel=generator_panel(PolymerCatalogue(4),2*10**22)
lengths={z:len(z) for z in cat.words if len(z)>2}
calibrated=readout_floor(F(135,1000),{z:F(95,100)*l for z,l in lengths.items()},lengths,F(2,1000))
selective=readout_floor(F(135,1000),{'0011':F(4)},lengths,F(2,1000))
inverse=[]
for v in [2*10**22,5*10**22,10**23,10**24]:
service=ReactorCertificate(v).constants()
for rho in [1e-3,1e-6,1e-9,1e-12]:
z=service.reward.inverse(rho,2,99)
inverse.append([v,rho,z,(99*float(service.drift)-52-z)/624-.05])
na=6.02214076e23
result=dict(configured_certificate=configured,paper_mission_rows=rows,all_window_rows=allrows,
source_alpha2_n4=dict(mean_degree=[float(v) for v in source['mean_degree']],witness_mass=[float(v) for v in source['witness_mass']],
exact_lower=lower,screening_1600_above_95_percent=screening_pass,scope='Independent redraws of chemistry, marks and trajectory; six silent food rows required'),
generator_panel=panel,deterministic=ode,readout=calibrated,selective_readout=selective,
units=dict(reference_molar=REFERENCE_MOLAR,residence_seconds=RESIDENCE_SECONDS,litres=COUNT_SCALE/na/REFERENCE_MOLAR,
mission_hours=199*RESIDENCE_SECONDS/3600,selected_forward_M_minus2_s_minus1=SELECTED_COEFFICIENT/(RESIDENCE_SECONDS*REFERENCE_MOLAR**2),
selected_reverse_M_minus1_s_minus1=SELECTED_COEFFICIENT/(RESIDENCE_SECONDS*REFERENCE_MOLAR)),
evidence='Exact scalar enclosures + literal generator diagnostics + numerical ODE. Stochastic theorems imported from manuscript; Lean not rerun.')
if args.simulate:result['small_count_trajectory']=reactor.simulate(SSA_VOLUME,seed=SSA_SEED,event_budget=SSA_EVENT_BUDGET)
dump=lambda name,obj:(out/name).write_text(json.dumps(obj,indent=2,default=lambda v:str(v) if isinstance(v,F) else float(v))+'\n',encoding='utf-8')
def table(name,header,data):
with (out/name).open('w',newline='') as f:w=csv.writer(f);w.writerow(header);w.writerows(data)
dump('results.json',result)
table('mission.csv',['V','eta','z','h','quota','error_upper','reward_exponent'],[[r[k] for k in ['V','eta','z','h','quota_99','error_upper','reward_exponent']] for r in rows])
table('inverse_planning.csv',['V','reward_error_only','z','quota_numeric'],inverse)
table('generator_panel.csv',list(panel[0]),[[r[k] for k in panel[0]] for r in panel])
table('trajectory.csv',['residence_time',*cat.words,'Q','food_arrivals','food_monomers','signed_synthesis','total_mass','nonfood_mass'],
np.column_stack([times,trajectory,mass,nonfood]))
detail=(f'quota/window {float(configured["quota_99"]):.8f} V; failure upper {float(configured["error_upper"]):.4g}'
if 'quota_99' in configured else configured['reason'])
lines=[f'Configured mission: {configured["status"]}; {detail}.',
f'Six paper operating points and two all-window points replayed with exact rational bounds.',
f'Catalogue: {len(cat.words)} words, {len(cat.splits)} ordered reversible splits, {len(reactor.channels)} marked channels.',
f'Designed deterministic window outputs: {ode["window_outputs"]}; ledger discrepancy {residual:.3g}.',
f'Chemistry witness mass at n=4, alpha=2: {float(source["witness_mass"][0]):.10f}.',
'No deterministic trace or sampled generator panel establishes the stochastic probability claim.']
(out/'console.txt').write_text('\n'.join(lines)+'\n');print('\n'.join(lines))
plot(out,rows,allrows,times,states,ledger,cat,panel)
digest=lambda p:hashlib.sha256(p.read_bytes()).hexdigest();here=Path(__file__).parent
dump('run_metadata.json',dict(manuscript_sha256=MANUSCRIPT_SHA256,python=platform.python_version(),source_sha256=digest(Path(__file__)),
module_sha256={n:digest(here/n) for n in ['polymer.py','certificate.py']},
output_sha256={p.name:digest(p) for p in sorted(out.iterdir()) if p.is_file() and p.name!='run_metadata.json'}))
def plot(out,rows,allrows,times,states,ledger,cat,panel):
import matplotlib
matplotlib.use('Agg')
import matplotlib.pyplot as plt
fig,axs=plt.subplots(1,2,figsize=(10,4),layout='constrained')
positions=np.arange(len(rows));axs[0].bar(positions,[float(r['quota_99']) for r in rows]);axs[0].axhline(.1,color='k',ls=':',label='Mission quota')
axs[0].set_xticks(positions,[f'{r["V"]:.0e}\n{float(r["eta"]):.0e}' for r in rows],fontsize=8)
axs[0].set(title='Six sufficient operating points',xlabel='Count scale V / food coefficient bound',ylabel='Guaranteed export per window / V');axs[0].legend(fontsize=8)
d=np.linspace(0,198,300)
for r in allrows:
q=(float(r['A'])*d-52-2*float(r['z']))/624-.05
axs[1].plot(d,np.maximum(q,0),label=f'V ≥ {r["V"]:.0e}')
axs[1].axhline(.1,color='k',ls=':');axs[1].set(title='Simultaneous output guarantees by window\nduration',xlabel='Window duration (residence times)',ylabel='Positive guaranteed output / V');axs[1].legend(fontsize=8)
for ax in axs:ax.grid(alpha=.2)
fig.savefig(out/'certificates.png',dpi=180);fig.savefig(out/'certificates.svg');plt.close(fig)
fig,axs=plt.subplots(1,2,figsize=(10,4),layout='constrained')
stockline=axs[0].plot(times,states[:,cat.index['0011']],label='Tetramer (left)',color='tab:blue')
export_axis=axs[0].twinx()
exportline=export_axis.plot(times,ledger[:,0],label='Output (right)',color='tab:orange')
export_axis.set_ylabel('Cumulative nonfood output / V',color='tab:orange')
axs[0].axvline(1,color='gray',ls=':');axs[0].axvline(100,color='gray',ls=':')
axs[0].set(title='One designed chemistry: density ODE',xlabel='Time (residence times)',ylabel='Tetramer concentration / reference')
axs[0].legend(stockline+exportline,[line.get_label() for line in stockline+exportline],fontsize=8,loc='center right')
p=np.arange(len(panel));axs[1].bar(p-.18,[r['variance'] for r in panel],width=.36,label='Retained reward')
axs[1].bar(p+.18,[r['full_variance'] for r in panel],width=.36,label='Full potential')
axs[1].axhline(panel[0]['variance_upper'],color='k',ls=':',label='Uniform retained bound')
axs[1].set_xticks(p,['Floor','Trimer','Low food','High stock'],rotation=15,fontsize=8)
axs[1].set(yscale='log',title='Fluctuation rates for full and retained\ngrowth measures',ylabel='Generator quadratic rate');axs[1].legend(fontsize=8)
for ax in axs:ax.grid(alpha=.2)
fig.savefig(out/'mechanism.png',dpi=180);fig.savefig(out/'mechanism.svg');plt.close(fig)
if __name__=='__main__':main()
Run output
Configured mission: CONDITIONAL_BOUND; quota/window 0.10103399 V; failure upper 2.866e-11. Six paper operating points and two all-window points replayed with exact rational bounds. Catalogue: 30 words, 68 ordered reversible splits, 990 marked channels. Designed deterministic window outputs: [106.94271940745111, 109.37811105858508]; ledger discrepancy 8.53e-14. Chemistry witness mass at n=4, alpha=2: 0.0018736515. No deterministic trace or sampled generator panel establishes the stochastic probability claim.
