Example code
A RAF is a set of reactions that can generate its required molecules from food and supply a catalyst for every reaction. That structural certificate does not specify how quickly molecules appear or how much material a reactor exports. This example connects the two questions through the same binary polymer catalogue, catalytic environment, and reaction identities.
The default host contains 30 species and 68 reversible ligation/split channels. Food monomers and dimers enter continuously; every species also leaves by dilution. The product 0011 catalyses its own formation from 00 and 11, alongside four other nonfood catalytic assignments. All basal reactions remain active, allowing startup from food alone.

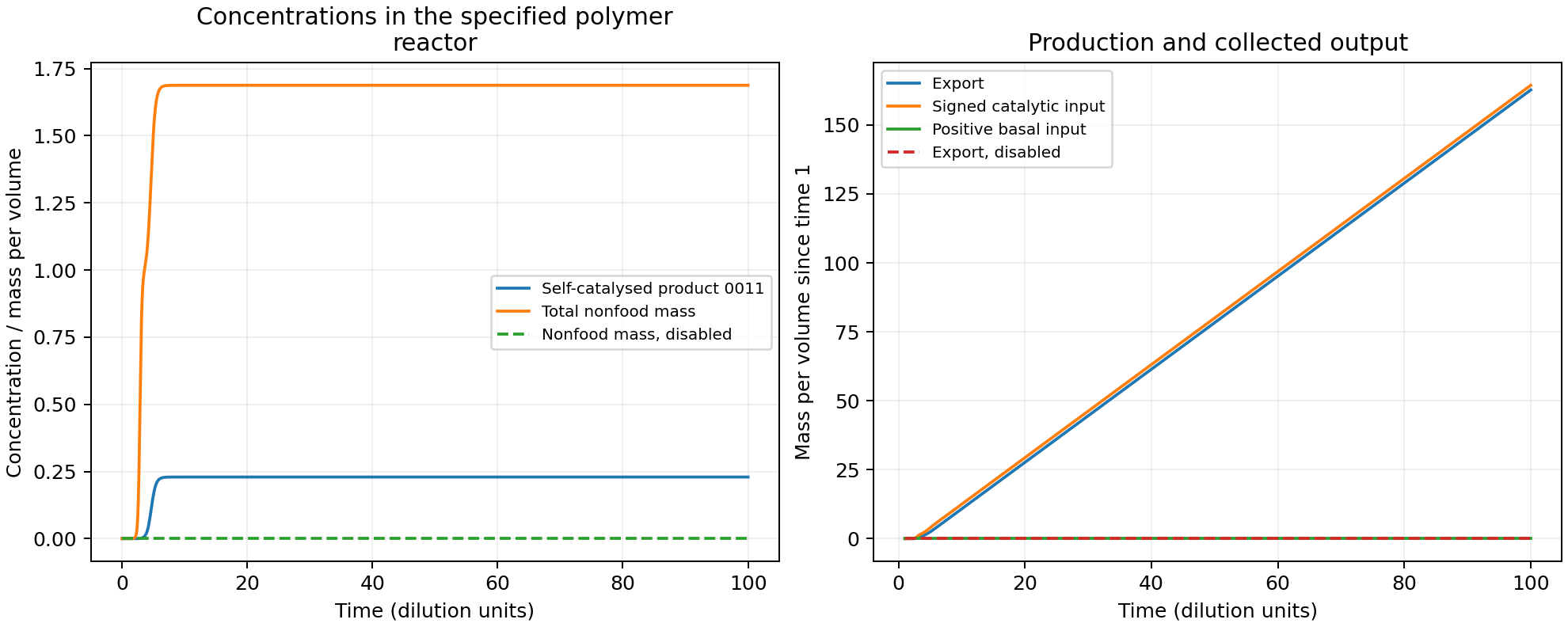

With the manuscript's coefficients, the full deterministic model exports about 162.693 units of nonfood mass per volume during . Disabling catalysis while keeping basal rates and feed gives about 0.0000415. Export can exceed instantaneous reactor mass because fresh food keeps entering. This specified host illustrates the mechanism; it is not a random draw used to estimate productive-environment frequency.

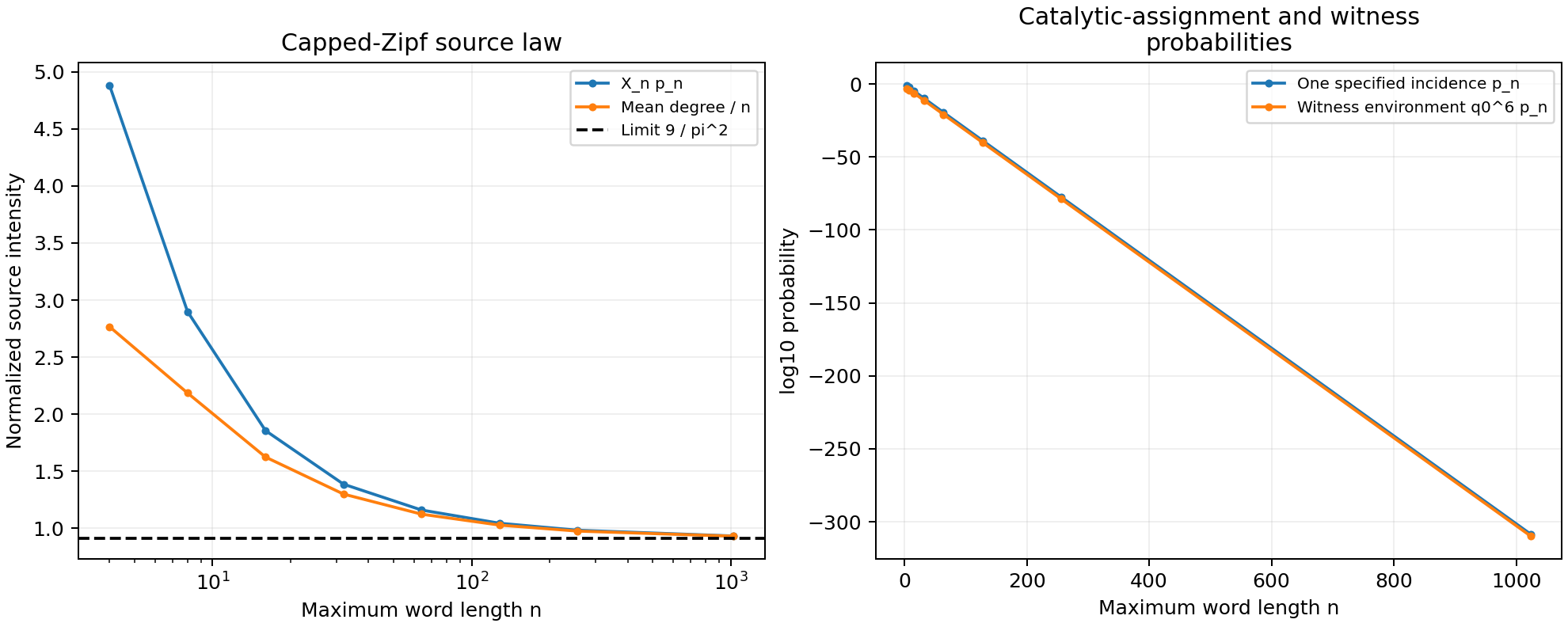

The source model independently gives each molecule a power-law-distributed number of catalysed channels, limited by a cap (a capped Zipf law), then chooses those channels without replacement. The cap's entire tail probability is retained. At the paper's exponent sequence, the probability of one specified molecule–channel catalytic assignment scales as , where is the number of species. The source curves show that incidence probability and the exact probability of a sufficient witness environment. Neither curve is the full reactor-output probability.
The theorem connects these layers: RAF existence has a nonzero limiting probability, its minimum size is typically subexponential, but bounded-mass productive output has probability of order under the stated sufficient volume scale. Conditioning on RAF existence preserves that order. The example evaluates the finite source formulas, explicit structural cutoff, and conservative probability bounds; it does not infer the theorem from a finite simulation.
For finite-copy exploration, the package also supplies a Gillespie simulator that samples individual reaction events with feed, dilution, every basal channel, and full catalytic input multiplicities. At the default volume 20, both saved runs export zero: tiny basal rates may never create a seed during the window. These runs do not meet the theorem's enormous sufficient-volume condition. A run stopped by the event budget is reported as unfinished, with no success/failure verdict.
Download the complete package for editable inputs, reusable catalogue, environment, kinetic-parameter, reaction-event and reactor classes, six scientific test groups, and all saved trajectories. The README shows how to sample new environments, condition on the witness event correctly, sweep volume, and distinguish repeated runs from independent complete trials. Two integration tolerances check the deterministic result; every stochastic jump checks exact integer mass and signed-production balances.
Python source
"""A shared polymer catalogue, catalytic source, and fed mass-action reactor.
Finite-copy runs and deterministic trajectories explore the literal model;
neither estimates the theorem's asymptotic success probability by default.
"""
from __future__ import annotations
from dataclasses import dataclass
from collections import Counter
from pathlib import Path
import argparse
import csv
import hashlib
import itertools
import json
import math
import platform
import mpmath as mp
import numpy as np
from scipy.integrate import solve_ivp
# EDITABLE INPUTS. Time is in dilution-time units; volume converts concentration
# to molecule counts. These are manuscript parameters, not measured constants.
MAX_WORD_LENGTH = 4
BASAL_EPSILON = 1 / 500_000_000
CATALYTIC_SCALE = 4.0
KINETIC_MARKS = (1.0, 1.5, 2.0)
MARK_SEED = 7601
TRAJECTORY_SEED = 20260922
STOCHASTIC_VOLUME = 20
MAX_EVENTS = 200_000
WINDOW_START, WINDOW_END = 1.0, 100.0
MASS_CEILING, EXPORT_THRESHOLD = 11.0, 0.1
OUTPUT_POINTS = 1001
SOURCE_LENGTHS = (4, 5, 6, 7, 8)
SOURCE_TRIALS = 48
SOURCE_SEED = 16092026
ANALYTIC_LENGTHS = (4, 8, 16, 32, 64, 128, 256, 1024)
MAX_CATALOGUE_SPECIES = 1022
MANUSCRIPT_SHA256 = '76c780846acad0324c5ac76cc00fb7d42ca5c5bf7060f9b9a2d13b59f75f5f3f'
# Specified host: product self-catalysis plus four nonfood assignments.
# Each entry is (catalyst, left reactant, right reactant).
HOST_ASSIGNMENTS = (('0011','00','11'), ('010','0','01'), ('101','1','10'),
('011','0','11'), ('110','1','00'))
@dataclass(frozen=True)
class Channel:
left: int
right: int
product: int
class PolymerCatalogue:
def __init__(self, n):
if not isinstance(n,int) or n < 2 or 2**(n+1)-2 > MAX_CATALOGUE_SPECIES:
raise ValueError('Catalogue length outside the explicit enumeration guard.')
self.n = n
self.words = tuple(''.join(bits) for size in range(1,n+1)
for bits in itertools.product('01',repeat=size))
self.index = {word:i for i,word in enumerate(self.words)}
self.channels = tuple(Channel(self.index[word[:cut]],self.index[word[cut:]],self.index[word])
for word in self.words for cut in range(1,len(word)))
self.lengths = np.array([len(word) for word in self.words],dtype=np.int64)
self.nonfood = self.lengths*(self.lengths > 2)
self.food = frozenset(np.flatnonzero(self.lengths <= 2).tolist())
self.channel_index = {(self.words[c.left],self.words[c.right]):i for i,c in enumerate(self.channels)}
def closure(self, selected):
available = set(self.food)
while True:
previous = len(available)
for i in selected:
c = self.channels[i]
if c.left in available and c.right in available:
available.add(c.product)
if c.product in available:
available.update((c.left,c.right))
if len(available) == previous:
return frozenset(available)
@dataclass(frozen=True)
class CatalyticEnvironment:
catalogue: PolymerCatalogue
rows: tuple[frozenset[int], ...]
def __post_init__(self):
if len(self.rows) != len(self.catalogue.words) or any(
not 0 <= r < len(self.catalogue.channels) for row in self.rows for r in row):
raise ValueError('Catalytic incidence outside catalogue.')
@classmethod
def specified(cls, catalogue, assignments=HOST_ASSIGNMENTS):
rows = [set() for _ in catalogue.words]
for catalyst,left,right in assignments:
rows[catalogue.index[catalyst]].add(catalogue.channel_index[left,right])
return cls(catalogue,tuple(frozenset(row) for row in rows))
def max_raf(self, container=None):
active = set(range(len(self.catalogue.channels))) if container is None else set(container)
while active:
closure = self.catalogue.closure(active)
catalysed = set().union(*(self.rows[x] for x in closure))
retained = {i for i in active if i in catalysed and all(v in closure for v in
(self.catalogue.channels[i].left,self.catalogue.channels[i].right,self.catalogue.channels[i].product))}
if retained == active:
return frozenset(active)
active = retained
return frozenset()
def irreducible_raf(self):
"""Deletion-minimal witness; deliberately NOT a minimum-size solver."""
active = self.max_raf()
for r in sorted(active):
smaller = self.max_raf(active-{r})
if smaller:
active = smaller
return active
def witness_event(self):
c = self.catalogue
if c.n < 4:
return False
return (all(not self.rows[f] for f in c.food)
and c.channel_index['00','11'] in self.rows[c.index['0011']])
class CappedZipfSource:
def __init__(self, catalogue, exponent=None):
self.catalogue = catalogue
self.exponent = 2-2/catalogue.n if exponent is None else exponent
if self.exponent <= 1:
raise ValueError('Zipf exponent must exceed one.')
R = len(catalogue.channels)
with mp.workdps(70):
a = mp.mpf(str(self.exponent))
weights = [mp.power(k,-a)/mp.zeta(a) for k in range(1,R)]
weights.append(mp.zeta(a,R)/mp.zeta(a))
self.weights = np.array([float(v) for v in weights])
self.weights /= self.weights.sum() # only floating-point normalization
def sample(self, rng, condition_on_witness=False):
"""Capped law including its tail atom, then uniform subsets per row.
Witness conditioning uses a size-biased product-row degree; simply
adding the required incidence to an ordinary sample has the wrong law.
"""
c, R = self.catalogue,len(self.catalogue.channels)
if condition_on_witness and c.n < 4:
raise ValueError('Witness needs maximum word length >= 4.')
degrees = rng.choice(R,size=len(c.words),p=self.weights)
forced = None
if condition_on_witness:
degrees[list(c.food)] = 0
forced = (c.index['0011'],c.channel_index['00','11'])
biased = np.arange(R)*self.weights
biased /= biased.sum()
degrees[forced[0]] = rng.choice(R,p=biased)
rows = []
for x,degree in enumerate(degrees):
if forced is not None and x == forced[0]:
other = rng.choice(R-1,size=int(degree)-1,replace=False)
row = {int(v)+(v >= forced[1]) for v in other}
row.add(forced[1])
else:
row = set(rng.choice(R,size=int(degree),replace=False).tolist())
rows.append(frozenset(row))
return CatalyticEnvironment(c,tuple(rows))
@staticmethod
def statistics(n, digits=80):
"""No catalogue allocation; Hurwitz zeta includes the whole cap tail."""
if n < 4:
raise ValueError('Critical sequence reported for n >= 4.')
with mp.workdps(digits):
a = 2-mp.mpf(2)/n
R, X = (n-2)*mp.power(2,n+1)+4,mp.power(2,n+1)-2
mean = (mp.zeta(a-1)-mp.zeta(a-1,R)+R*mp.zeta(a,R))/mp.zeta(a)-1
p,q0 = mean/R,1/mp.zeta(a)
return {key:mp.nstr(value,35) for key,value in {
'exponent':a,'mean_degree':mean,'mean_degree_over_n':mean/n,
'X_times_p':X*p,'log10_incidence':mp.log10(p),
'log10_witness_event':mp.log10(q0**6*p),'zero_degree_probability':q0,
'cap_probability':mp.zeta(a,R)/mp.zeta(a)}.items()}
@dataclass(frozen=True)
class KineticParameters:
basal: tuple[float, ...]
catalytic: dict[tuple[int,int],float]
@classmethod
def sample(cls, environment, seed=MARK_SEED, epsilon=BASAL_EPSILON,
catalytic_scale=CATALYTIC_SCALE, reproduce_host_marks=False):
rng = np.random.default_rng(seed)
R = len(environment.catalogue.channels)
marks = rng.choice(KINETIC_MARKS,size=(3 if reproduce_host_marks else 2,R))
basal = tuple(epsilon*marks[0]*marks[1])
coefficients = {}
incidences = sorted((r,x) for x,row in enumerate(environment.rows) for r in row)
if reproduce_host_marks and len({r for r,x in incidences}) != len(incidences):
raise ValueError('Figure-mark adapter assumes at most one catalyst per channel.')
for r,x in incidences:
h = marks[2,r] if reproduce_host_marks else rng.choice(KINETIC_MARKS)
coefficients[r,x] = float(catalytic_scale*marks[0,r]*h)
return cls(basal,coefficients)
@dataclass(frozen=True)
class ReactionEvent:
inputs: tuple[int, ...]
outputs: tuple[int, ...]
coefficient: float
kind: str
def propensity(self, counts, volume):
rate = self.coefficient*volume**(1-len(self.inputs))
for x,multiplicity in Counter(self.inputs).items():
for offset in range(multiplicity):
rate *= max(0,int(counts[x])-offset)
return rate
class FedReactor:
def __init__(self, environment, parameters, enabled=True):
self.environment,self.parameters,self.enabled = environment,parameters,enabled
self.catalogue = c = environment.catalogue
if len(parameters.basal) != len(c.channels) or min(parameters.basal) <= 0:
raise ValueError('Each channel needs a positive basal coefficient.')
events = []
for r,channel in enumerate(c.channels):
left,right,product = channel.left,channel.right,channel.product
events.extend((ReactionEvent((left,right),(product,),parameters.basal[r],'basal'),
ReactionEvent((product,),(left,right),parameters.basal[r],'basal')))
if enabled:
for x,row in enumerate(environment.rows):
if r in row:
k = parameters.catalytic[r,x]
if k <= 0:
raise ValueError('Positive catalytic coefficient required.')
events.extend((ReactionEvent((left,right,x),(product,x),k,'catalytic'),
ReactionEvent((product,x),(left,right,x),k,'catalytic')))
self.events = tuple(events)
count = len(c.words)
self.stoich = np.zeros((count,len(events)),dtype=np.int64)
self.input_indices = np.full((len(events),3),count,dtype=np.int64)
self.offsets = np.zeros((len(events),3),dtype=np.int64)
self.orders = np.array([len(e.inputs) for e in events])
self.coefficients = np.array([e.coefficient for e in events])
for j,e in enumerate(events):
used = Counter()
for k,x in enumerate(e.inputs):
self.input_indices[j,k] = x
self.offsets[j,k] = used[x]
used[x] += 1
self.stoich[x,j] -= 1
for x in e.outputs:
self.stoich[x,j] += 1
assert np.all([email protected] == 0)
self.nf_changes = [email protected]
self.is_catalytic = np.array([e.kind == 'catalytic' for e in events])
self.feed = (c.lengths <= 2).astype(float)
def rates(self, values, volume=None):
padded = np.r_[values,1]
factors = padded[self.input_indices]
if volume is not None:
factors = np.maximum(factors-self.offsets,0)
rates = self.coefficients*np.prod(factors,axis=1)
return rates if volume is None else rates*np.power(float(volume),1-self.orders)
def rhs(self, time, state):
c = self.catalogue
x = state[:len(c.words)]
rates = self.rates(x)
signed = self.nf_changes*rates
return np.r_[self.feed-x+self.stoich@rates, c.nonfood@x,
np.sum(signed[self.is_catalytic]),np.sum(signed[~self.is_catalytic]),
np.maximum(self.nf_changes[~self.is_catalytic],0)@rates[~self.is_catalytic]]
def deterministic(self, times, rtol=2e-12):
times = np.array(times,dtype=float)
if times[0] != 0 or np.any(np.diff(times) <= 0):
raise ValueError('Increasing output times must start at zero.')
solution = solve_ivp(self.rhs,(0,times[-1]),np.r_[self.feed,0,0,0,0],
t_eval=times,method='DOP853',rtol=rtol,atol=1e-18)
if not solution.success:
raise RuntimeError(solution.message)
if np.min(solution.y[:len(self.catalogue.words)]) < -1e-12:
raise ArithmeticError('Materially negative concentration: refine integration.')
return solution.y.T
def stochastic(self, volume, seed, end=WINDOW_END, start=WINDOW_START,max_events=MAX_EVENTS):
if (not isinstance(volume,int) or not 0 < volume < 10**12
or not 0 <= start < end or not math.isfinite(end) or max_events < 1):
raise ValueError('Positive integer volume and valid output window required.')
c, rng = self.catalogue,np.random.default_rng(seed)
counts = (self.feed*volume).astype(np.int64)
food = sorted(c.food)
time, peak = 0.0,int(c.lengths@counts)
export_total = export_window = catalytic_input = basal_input = basal_positive = 0
feed_mass = outflow_mass = 0
trace = [(0.0,10.0,0.0,0.0)]
completed = False
for step in range(max_events):
rates = np.r_[self.rates(counts,volume),np.full(len(food),volume),counts]
total = rates.sum()
waiting = rng.exponential(1/total)
if time+waiting > end:
time = end
completed = True
break
time += waiting
event = int(np.searchsorted(np.cumsum(rates),rng.random()*total,side='right'))
if event < len(self.events):
counts += self.stoich[:,event]
delta = int(self.nf_changes[event])
if self.is_catalytic[event]:
catalytic_input += delta
else:
basal_input += delta
basal_positive += max(0,delta)
elif event < len(self.events)+len(food):
x = food[event-len(self.events)]
counts[x] += 1
feed_mass += int(c.lengths[x])
else:
x = event-len(self.events)-len(food)
counts[x] -= 1
outflow_mass += int(c.lengths[x])
reward = int(c.nonfood[x])
export_total += reward
if time > start:
export_window += reward
assert np.min(counts) >= 0
mass = int(c.lengths@counts)
peak = max(peak,mass)
assert mass == 10*volume+feed_mass-outflow_mass
assert int(c.nonfood@counts)+export_total == catalytic_input+basal_input
if step % 100 == 0:
trace.append((time,mass/volume,int(c.nonfood@counts)/volume,export_window/volume))
trace.append((time,int(c.lengths@counts)/volume,int(c.nonfood@counts)/volume,export_window/volume))
return {'completed':completed,'events':step if completed else max_events,'end_time':time,
'volume':volume,'maximum_total_mass':peak/volume,'window_export':export_window/volume,
'productive':bool(peak/volume <= MASS_CEILING and export_window/volume > EXPORT_THRESHOLD) if completed else None,
'signed_catalytic_input':catalytic_input/volume,'signed_basal_input':basal_input/volume,
'positive_basal_input':basal_positive/volume,'final_nonfood_mass':int(c.nonfood@counts)/volume,
'total_export':export_total/volume,'integer_balances_exact':True,'trace':trace}
class TheoremBounds:
"""Conservative finite inequalities; no huge catalogue is allocated."""
@staticmethod
def structural_budget(n):
if not isinstance(n,int) or n < 4:
raise ValueError('Integer n >= 4 required.')
h = math.isqrt(math.isqrt(n**3))
L = math.isqrt(64*n)
L += L*L < 64*n
with mp.workdps(80):
# A_n=(n+1)*2^(L+1)+n^4*2^h; B_n=A_n^2.
A = (n+1)*mp.power(2,L+1)+n**4*mp.power(2,h)
log2B = 2*mp.log(A,2)
return {'n':n,'h':h,'L':L,'log2_budget':mp.nstr(log2B,30),
'log2_budget_over_n':mp.nstr(log2B/n,30)}
@staticmethod
def evaluate(n, volume):
with mp.workdps(80):
d = mp.mpf(1)/(6*10**20)
c = d*d/(4*10**7)
if n < 4 or volume < 2*n/d:
return {'applicable':False,'reason':'requires n >= 4 and V >= 2n/d'}
stats = CappedZipfSource.statistics(n)
logp = mp.mpf(stats['log10_incidence'])*mp.log(10)
logwitness = mp.mpf(stats['log10_witness_event'])*mp.log(10)
logdelta = -c*mp.mpf(volume)/n
k = 4*10**8
logC = ((k+1)*mp.log(2)+mp.log1p(-mp.power(2,-k))
+mp.log(k)+(k+3)*mp.log(2)+mp.log1p(4/(k*mp.power(2,k+3))))
lower_factor = 1-24*mp.exp(logdelta)
upper_log = max(logC+logp,mp.log(4)+logdelta)
upper_log += mp.log1p(mp.exp(min(logC+logp,mp.log(4)+logdelta)-upper_log))
return {'applicable':True,'log10_noise':mp.nstr(logdelta/mp.log(10),25),
'log10_positive_lower_bound':mp.nstr((logwitness+mp.log(lower_factor))/mp.log(10),25) if lower_factor > 0 else None,
'log10_upper_bound_capped_at_one':mp.nstr(min(0,upper_log)/mp.log(10),25),
'log10_disabled_upper_bound_capped_at_one':mp.nstr(min(0,mp.log(2)+logdelta)/mp.log(10),25),
'log10_catalogue_constant':mp.nstr(logC/mp.log(10),25)}
def write_csv(path, headers, rows):
with path.open('w',newline='') as stream:
writer = csv.writer(stream)
writer.writerow(headers)
writer.writerows(rows)
def main():
parser = argparse.ArgumentParser(description=__doc__)
parser.add_argument('--output',type=Path,default=Path('outputs'))
args = parser.parse_args()
out = args.output
out.mkdir(parents=True,exist_ok=True)
catalogue = PolymerCatalogue(MAX_WORD_LENGTH)
environment = CatalyticEnvironment.specified(catalogue)
parameters = KineticParameters.sample(environment,reproduce_host_marks=True)
enabled,disabled = FedReactor(environment,parameters),FedReactor(environment,parameters,False)
times = np.unique(np.r_[np.linspace(0,WINDOW_END,OUTPUT_POINTS),WINDOW_START])
fine,coarse,off = enabled.deterministic(times),enabled.deterministic(times,1e-10),disabled.deterministic(times)
N = len(catalogue.words)
start = int(np.searchsorted(times,WINDOW_START))
deterministic = {'specified_host_not_source_sample':True,'witness_event':environment.witness_event(),
'max_raf_channels':len(environment.max_raf()),'irreducible_witness_channels':len(environment.irreducible_raf()),
'enabled_export':float(fine[-1,N]-fine[start,N]),'disabled_export':float(off[-1,N]-off[start,N]),
'tolerance_max_difference':float(np.max(np.abs(fine-coarse))),
'maximum_mass_error':float(np.max(np.abs(fine[:,:N]@catalogue.lengths-10))),
'nonfood_balance_error':float(np.max(np.abs(fine[:,:N]@catalogue.nonfood+fine[:,N]-fine[:,N+1]-fine[:,N+2])))}
write_csv(out/'deterministic.csv',['time',*catalogue.words,'export','signed_catalytic','signed_basal','positive_basal'],zip(times,*fine.T))
write_csv(out/'disabled_deterministic.csv',['time',*catalogue.words,'export','signed_catalytic','signed_basal','positive_basal'],zip(times,*off.T))
stochastic = {}
for name,model in [('enabled',enabled),('disabled',disabled)]:
run = model.stochastic(STOCHASTIC_VOLUME,TRAJECTORY_SEED)
write_csv(out/f'{name}_stochastic.csv',['time','total_mass','nonfood_mass','window_export'],run.pop('trace'))
stochastic[name] = run
rng = np.random.default_rng(SOURCE_SEED)
census = []
for n in SOURCE_LENGTHS:
cat = PolymerCatalogue(n)
source = CappedZipfSource(cat)
witnesses = [source.sample(rng).max_raf() for _ in range(SOURCE_TRIALS)]
census.append({'n':n,'trials':SOURCE_TRIALS,'raf_count':sum(bool(w) for w in witnesses),
'maximum_raf_sizes':[len(w) for w in witnesses]})
analytic = [{'n':n,**CappedZipfSource.statistics(n),
'bounds_at_sufficient_volume':TheoremBounds.evaluate(n,10**60*(n+1)**2)} for n in ANALYTIC_LENGTHS]
result = {'deterministic':deterministic,'finite_copy_runs':stochastic,'source_census':census,
'structural_cutoff':[TheoremBounds.structural_budget(n) for n in (4,16,256,4096,65536,1000000)],
'source_law':analytic,'bounds_at_simulated_volume':TheoremBounds.evaluate(MAX_WORD_LENGTH,STOCHASTIC_VOLUME)}
(out/'results.json').write_text(json.dumps(result,indent=2)+'\n')
lines = [f'Specified host: {N} species, {len(catalogue.channels)} reversible channels; witness event = {environment.witness_event()}.',
f'Deterministic enabled/disabled export: {deterministic["enabled_export"]:.8g} / {deterministic["disabled_export"]:.8g}.',
f'ODE mass error: {deterministic["maximum_mass_error"]:.3g}; balance error: {deterministic["nonfood_balance_error"]:.3g}.',
'Finite-copy runs are exploratory; the theorem volume hypothesis is NOT met.']
lines += [f'{name}: completed={r["completed"]}, output event={r["productive"]}, export={r["window_export"]}.' for name,r in stochastic.items()]
lines += [f'Source n={r["n"]}: {r["raf_count"]}/{r["trials"]} RAFs (finite sample; not the limiting survival probability).' for r in census]
(out/'console.txt').write_text('\n'.join(lines)+'\n')
print('\n'.join(lines))
import matplotlib
matplotlib.use('Agg')
import matplotlib.pyplot as plt
fig,axes = plt.subplots(1,2,figsize=(11,4.4),layout='constrained')
axes[0].plot(times,fine[:,catalogue.index['0011']],label='Self-catalysed product 0011')
axes[0].plot(times,fine[:,:N]@catalogue.nonfood,label='Total nonfood mass')
axes[0].plot(times,off[:,:N]@catalogue.nonfood,'--',label='Nonfood mass, disabled')
axes[0].set(xlabel='Time (dilution units)',ylabel='Concentration / mass per volume',title='Concentrations in the specified polymer\nreactor')
for col,label in [(N,'Export'),(N+1,'Signed catalytic input'),(N+3,'Positive basal input')]:
axes[1].plot(times[start:],fine[start:,col]-fine[start,col],label=label)
axes[1].plot(times[start:],off[start:,N]-off[start,N],'--',label='Export, disabled')
axes[1].set(xlabel='Time (dilution units)',ylabel='Mass per volume since time 1',title='Production and collected output')
for ax in axes:
ax.legend(fontsize=8);ax.grid(alpha=.2)
fig.savefig(out/'reactor.png',dpi=180);fig.savefig(out/'reactor.svg');plt.close(fig)
fig,axes = plt.subplots(1,2,figsize=(11,4.4),layout='constrained')
for key,label in [('X_times_p','X_n p_n'),('mean_degree_over_n','Mean degree / n')]:
axes[0].plot(ANALYTIC_LENGTHS,[float(r[key]) for r in analytic],'.-',label=label)
axes[0].axhline(9/math.pi**2,color='black',ls='--',label='Limit 9 / pi^2')
axes[0].set(xscale='log',xlabel='Maximum word length n',ylabel='Normalized source intensity',title='Capped-Zipf source law')
for key,label in [('log10_incidence','One specified incidence p_n'),('log10_witness_event','Witness environment q0^6 p_n')]:
axes[1].plot(ANALYTIC_LENGTHS,[float(r[key]) for r in analytic],'.-',label=label)
axes[1].set(xlabel='Maximum word length n',ylabel='log10 probability',title='Catalytic-assignment and witness\nprobabilities')
for ax in axes:
ax.legend(fontsize=8);ax.grid(alpha=.2)
fig.savefig(out/'source.png',dpi=180);fig.savefig(out/'source.svg');plt.close(fig)
digest = lambda p:hashlib.sha256(p.read_bytes()).hexdigest()
(out/'run_metadata.json').write_text(json.dumps({'manuscript_sha256':MANUSCRIPT_SHA256,
'source_sha256':digest(Path(__file__)),'python':platform.python_version(),
'output_sha256':{p.name:digest(p) for p in sorted(out.iterdir()) if p.is_file() and p.name != 'run_metadata.json'}},indent=2)+'\n')
if __name__ == '__main__':
main()
Run output
Specified host: 30 species, 68 reversible channels; witness event = True. Deterministic enabled/disabled export: 162.69303 / 4.1474803e-05. ODE mass error: 8.88e-15; balance error: 1.67e-13. Finite-copy runs are exploratory; the theorem volume hypothesis is NOT met. enabled: completed=True, output event=False, export=0.0. disabled: completed=True, output event=False, export=0.0. Source n=4: 48/48 RAFs (finite sample; not the limiting survival probability). Source n=5: 48/48 RAFs (finite sample; not the limiting survival probability). Source n=6: 48/48 RAFs (finite sample; not the limiting survival probability). Source n=7: 48/48 RAFs (finite sample; not the limiting survival probability). Source n=8: 48/48 RAFs (finite sample; not the limiting survival probability).
