Example code
An amplification assay may be unable to distinguish target-containing wells from blanks using detection time alone. This example builds the paper's finite-resource stochastic source and compares timing-only decisions, an additional readout of target identity, and increased resource headroom.
For the reference threshold-five source, the best numerical timing deadline still misses 8.96% of loaded wells at a 1% blank-positive limit. Exact error bounds, connected by the manuscript's deadline-optimality theorem, exclude every timing-only rule at the requested 1%/5% targets. A source-preserving identity channel passes those targets under its stated conditional sensitivity and specificity assumptions.
Reusable classes separate the amplification source, observation channel, calibration intervals and capacity inference. Inputs at the top of the script let readers change the source and acquisition settings. Exact finite-state probability calculations retain wells already positive at time zero; a separate large-threshold calculation reproduces the paper's finite guarantees without allocating a million-state chain.
Capacity inference uses waiting times at known absolute counts of amplified units to remove a common clock multiplier. The example keeps censored and unresolved wells in the denominator. Its three synthetic acquisitions return a finite interval, [6.745, 8.715], and two lower bounds with no justified finite upper endpoint. Selecting only completed wells changes the comparison law and can defeat clock cancellation.
The complete package includes composable source and observation models, exact and directed certificates, numerical comparisons, synthetic well tables and seven scientific test groups. Reference theorem calculations are kept distinct from edited inputs and numerical limit laws. The channel and calibration contracts are illustrative assumptions; the code does not establish clinical performance or rerun Lean.
Python source
"""Trustworthy amplification decisions: source, observation, and inference.
Run: python example.py --output outputs. All wells are synthetic; inputs are
dimensionless paper fixtures, not calibrated clinical assay parameters.
"""
from __future__ import annotations
import argparse
from fractions import Fraction as F
from dataclasses import asdict, replace
from pathlib import Path
import csv
import hashlib
import json
import math
import platform
import numpy as np
from scipy.integrate import quad
from scipy.special import digamma
from source import AmplificationSource, IdentityChannel, fixed_rate_window
from observation import (PairedCapacity, BlockCapacity, DurationInterval, CensoredComparison,
SignalCalibration, compare_intervals, crossing_bracket)
from certificates import timing_dual_certificate, large_threshold_certificate, explicit_deadlines, LimitLaw
# EDITABLE INPUTS ------------------------------------------------------------
THRESHOLD = 5 # active units at a latched positive call
CAPACITY = '5' # resource units; must exceed threshold-1
BACKGROUND = '0.01' # active units per normalized time
GROWTH = '1' # inverse normalized time; a=background/growth
LOADING_MEAN = '4' # Poisson initial active units, includes empties
BLANK_LIMIT = '0.01'
MISS_LIMIT = '0.05'
IDENTITY_DEADLINE = '7'
IDENTITY_FALSE_POSITIVE = '0.01' # conditional on an empty-well hit
IDENTITY_SENSITIVITY = '0.99' # conditional on an occupied-well hit
CAPACITY_A = '0.01' # known b/g for the timing-comparison experiment
EARLY_STATE, LATE_STATE = 2, 4
CALIBRATION_WELLS = 4000 # independent wells; every unresolved well kept
COMPARISON_DELTA = '0.05' # confidence failure budget, not assay error
INTERVAL_ERROR_ALLOWANCE = '0' # known mean interval-failure probability
SHARED_CALIBRATION_FAILURE = '0' # separate union-bound allowance
CLOCK_VALUES = (.4, 1., 3.) # constant within each well; varies between wells
CALIBRATION_SCENARIOS = (('resolved',7,8.,.002),('short follow-up',7,.12,.05),('large capacity',100,8.,.002))
SEED = 20260916
LARGE_THRESHOLDS = (1_000_000,100_000_000) # reference theorem a=.01, lambda=4
EXACT_DEGREE = 200
MANUSCRIPT_SHA256 = 'c8a26ae06acfe7284d0ee02fd04f90eb89d13d6a77ce839e73e2bda765912dba'
# ---------------------------------------------------------------------------
def censored_wells(model,n,rng,R,horizon,frame,clocks=CLOCK_VALUES):
if type(n)!=int or n<1 or not 0<frame<=horizon or any(not math.isfinite(c) or c<=0 for c in clocks):
raise ValueError('Invalid sample size, acquisition times or clock values.')
clock=rng.choice(clocks,n);a=float(model.a);i,j=model.early,model.late
if R<=j:raise ValueError('Capacity must exceed the late held state.')
U=rng.exponential(1/((a+i)*(1-i/R)),n)/clock
V=rng.exponential(1/((a+j)*(1-j/R)),n)/clock
def bracket(x):
if x>=horizon:return DurationInterval(F(str(horizon)),None)
# Decimal frame times, not rounded floating products at frame boundaries.
k=math.floor(x/frame);d=F(str(frame))
lo=k*d;hi=(k+1)*d
# Ensure containment despite a floating ratio at an exact boundary.
xx=F(str(float(x)))
return DurationInterval(min(lo,xx),max(hi,xx))
rows=[];counts=dict(positive=0,negative=0,unknown=0)
for well,(u,v,c) in enumerate(zip(U,V,clock),1):
bu,bv=bracket(u),bracket(v);category=compare_intervals(bu,bv);counts[category]+=1
assert category!='positive' or v>u
assert category!='negative' or v<=u
rows.append([well,c,u,v,bu.lower,bu.upper,bv.lower,bv.upper,category])
comparison=CensoredComparison(**counts)
interval=comparison.confidence(F(COMPARISON_DELTA),F(INTERVAL_ERROR_ALLOWANCE))
return dict(n=n,**counts,probability_interval=interval,**model.capacity_set(interval)),rows
def selection_example(model,R=7):
"""Illustration: retaining only U+V<=1 breaks clock cancellation."""
a=float(model.a);i,j=model.early,model.late;rows=[]
for clock in CLOCK_VALUES:
qi=clock*(a+i)*(1-i/R);qj=clock*(a+j)*(1-j/R)
num=quad(lambda u:qi*math.exp(-qi*u)*(math.exp(-qj*u)-math.exp(-qj*(1-u))),0,.5,epsabs=1e-12)[0]
den=quad(lambda u:qi*math.exp(-qi*u)*(1-math.exp(-qj*(1-u))),0,1,epsabs=1e-12)[0]
rows.append(dict(clock=clock,unselected=float(model.probability(R)),selected=num/den,completion=den))
return rows
def plateau_normalized_ratio(R,a=.01):
"""Ratio of expected block times at 20%,40%,60% of the plateau.
This is NOT the expectation of a ratio; it illustrates the leading-order
loss of capacity information after replacing absolute states by fractions.
"""
if type(R)!=int or R<10 or a<=0:raise ValueError('Integer capacity >=10 and a>0 required.')
k0,k1,k2=[int(f*R) for f in [.2,.4,.6]]
def mean(lo,hi):return R/(R+a)*(digamma(hi+a)-digamma(lo+a)+digamma(R-lo+1)-digamma(R-hi+1))
return mean(k1,k2)/mean(k0,k1)
def main():
parser=argparse.ArgumentParser(description=__doc__);parser.add_argument('--output',type=Path,default=Path('outputs'));args=parser.parse_args()
out=args.output;out.mkdir(parents=True,exist_ok=True)
source=AmplificationSource(THRESHOLD,F(CAPACITY),F(BACKGROUND),F(GROWTH),F(LOADING_MEAN))
channel=IdentityChannel(F(IDENTITY_FALSE_POSITIVE),F(IDENTITY_SENSITIVITY))
alpha,beta=F(BLANK_LIMIT),F(MISS_LIMIT)
if not 0<alpha<1 or not 0<beta<1 or not 0<=F(SHARED_CALIBRATION_FAILURE)<1:raise ValueError('Invalid error budgets.')
user_bounds=source.certify(F(IDENTITY_DEADLINE),EXACT_DEGREE)
user=dict(source=asdict(source),initial_hit_atom=source.initial_hit(),numerical_best_deadline=source.numerical_optimum(float(alpha)),
deadline_bounds=asdict(user_bounds),deadline_status=user_bounds.deadline_status(alpha,beta),
joint=channel.guaranteed_errors(user_bounds),joint_fixture=channel.joint_fixture(source,float(IDENTITY_DEADLINE)))
# Fixed reference demonstrations remain explicitly distinct from edited inputs.
reference=AmplificationSource();refchannel=IdentityChannel();finite=[]
for h,R,t,L in [(5,5,4,200),(5,5,5,200),(5,5,7,200),(5,10,F(16,5),200),(20,20,8,300),(20,20,10,300)]:
model=replace(reference,threshold=h,capacity=F(R));b=model.certify(t,L)
finite.append(dict(threshold=h,capacity=R,deadline=t,blank_lower=b.blank[0],blank_upper=b.blank[1],miss_lower=b.miss[0],miss_upper=b.miss[1],
deadline_status=b.deadline_status(),all_timing_excluded_using_theorem=b.separates_all_timing(),
**{'joint_'+key:value for key,value in refchannel.guaranteed_errors(b).items()}))
dual=timing_dual_certificate()
assert finite[0]['blank_lower']>F(73,10000) and finite[1]['miss_lower']>F(69,1000)
dual['intercept_lower']=F(1055,10000);dual['miss_lower_at_blank_1pct']=F(555,10000)
dual['tv_exclusion_budget']='5*delta_blank+delta_loaded <= .0055; complete timing-law TV budgets'
robust=refchannel.guaranteed_errors(fixed_rate_window(reference,F(699,100),F(701,100)))
reserve=replace(reference,capacity=F(10))
rb=fixed_rate_window(reserve,F(319,100),F(321,100))
large=large_threshold_certificate();times=[explicit_deadlines(h) for h in LARGE_THRESHOLDS]
limits={name:LimitLaw(headroom_zero=zero).optimum() for name,zero in [('growing reserve',False),('zero headroom',True)]}
paired=PairedCapacity(F(CAPACITY_A),EARLY_STATE,LATE_STATE);rng=np.random.default_rng(SEED);simulations=[]
def table(name,header,rows):
with (out/name).open('w',newline='',encoding='utf-8') as f:w=csv.writer(f);w.writerow(header);w.writerows(rows)
for index,(name,R,horizon,frame) in enumerate(CALIBRATION_SCENARIOS):
result,rows=censored_wells(paired,CALIBRATION_WELLS,rng,R,horizon,frame)
result.update(name=name,true_capacity=R,horizon=horizon,frame=frame,
total_confidence_failure_upper=min(F(1),F(COMPARISON_DELTA)+F(SHARED_CALIBRATION_FAILURE)))
simulations.append(result)
table(f'synthetic_wells_{index+1}.csv',['well','clock','true_U','true_V','U_lower','U_upper_empty_means_infinite','V_lower','V_upper_empty_means_infinite','category'],rows)
block=BlockCapacity();blocks=[dict(capacity=R,probability=block.probability(R)) for R in [6,7,10,20,100]]
block_interval=block.capacity_set((F(32,100),F(35,100)))
selection=selection_example(paired)
plateau=[dict(capacity=R,ratio_of_expected_times=plateau_normalized_ratio(R)) for R in [100,1000,10000,100000]]
design=[]
for R in [7,20,100]:
p=paired.probability(R);gap=min(paired.probability(F(9,10)*R)-p,p-paired.probability(F(11,10)*R))
design.append(dict(capacity=R,point_estimate_gap=gap,sufficient_wells_numeric=math.ceil(math.log(40)/(2*float(gap)**2))))
signal=SignalCalibration();raw=signal.state_interval(1110)
crossings=[DurationInterval(F('2'),F('2.1')),DurationInterval(F('3.5'),F('3.6')),DurationInterval(F('4.9'),F('5'))]
U=DurationInterval.from_crossings(*crossings[:2]);V=DurationInterval.from_crossings(*crossings[1:])
observation=dict(signal_units_interval=raw,successive_duration_U=asdict(U),successive_duration_V=asdict(V),comparison=compare_intervals(U,V),
no_crossing=crossing_bracket([0,1,2],[(0,1),(1,2),(2,3)],5),
physical_sets={name:paired.capacity_set(p) for name,p in [('incompatible',('.1','.2')),('unresolved',(0,1)),('finite',('.44','.47')),('lower',('.32','.4'))]})
# Equal endpoint laws via permutation of independent exponential summands.
q6=AmplificationSource(3,F(6),F(2),F(1)).rates();q4=AmplificationSource(3,F(4),F(8,3),F(2,3)).rates()
assert sorted(q6)==sorted(q4)
results=dict(user=user,reference_finite=finite,reference_timing_dual=dual,reference_fixed_rate_joint=robust,
reference_fixed_rate_reserve=dict(bounds=asdict(rb),status=rb.deadline_status()),reference_large_threshold=large,
explicit_deadlines=times,numerical_limits=limits,capacity_simulations=simulations,block_probabilities=blocks,
block_capacity_outer_interval=block_interval,completion_selection=selection,sample_design=design,observation=observation,
reference_plateau_normalization=dict(rows=plateau,limit=math.log(2.25)/math.log(8/3),evidence='ratio of expected times; finite corrections retain information'),
endpoint_nonidentifiability=dict(rates_R6=q6,rates_R4=q4,a_is_different=True),
zero_error_trials={str(p):math.ceil(math.log(.025)/math.log(1-p)) for p in [.01,.05,.0003]},
evidence='Exact/directed bounds and numerical illustrations separated. General source/decision theorems imported; Lean not rerun; no clinical calibration supplied.')
def serialize(v):
if isinstance(v,F):return str(v)
if isinstance(v,DurationInterval):return asdict(v)
return float(v)
def dump(name,obj):(out/name).write_text(json.dumps(obj,indent=2,default=serialize)+'\n',encoding='utf-8')
dump('results.json',results)
table('finite_decisions.csv',list(finite[0]),[[float(v) if isinstance(v,F) else v for v in row.values()] for row in finite])
table('capacity_design.csv',list(design[0]),[[float(v) if isinstance(v,F) else v for v in row.values()] for row in design])
curves=[]
for t in np.linspace(0,12,121):
B,M=reference.numerical_errors(t);C=1-M-math.exp(-4)*B;rb_,rm_=reserve.numerical_errors(t)
curves.append([t,B,M,.01*B,1-.99*C,rb_,rm_])
table('timing_curves.csv',['deadline','blank_R5','miss_R5','joint_blank_R5','joint_miss_R5','blank_R10','miss_R10'],curves)
lines=[f'User source: numerical best deadline {user["numerical_best_deadline"]["deadline"]:.6f}; miss {user["numerical_best_deadline"]["miss"]:.6%}.',
'Reference R=h=5: exact separating witness excludes every timing-only rule under the manuscript theorem.',
f'Reference identity rule, fixed-rate uncertainty: blank <= {float(robust["blank_upper"]):.8f}; miss <= {float(robust["miss_upper"]):.8f}.',
f'Reference capacity-ten fixed-rate window: {rb.deadline_status()}.',
f'Calibrated signal 1110: {raw[0]:,}..{raw[1]:,} possible active units.',
*[f'{r["name"]}: {r["positive"]}/{r["negative"]}/{r["unknown"]} positive/negative/unresolved; {r["status"]}.' for r in simulations],
'Synthetic fixtures and supplied contracts only; timing-only optimality and large-threshold source connections are manuscript theorems.']
(out/'console.txt').write_text('\n'.join(lines)+'\n',encoding='utf-8');print('\n'.join(lines))
plot(out,curves,simulations,selection,blocks)
digest=lambda p:hashlib.sha256(p.read_bytes()).hexdigest();here=Path(__file__).parent
dump('run_metadata.json',dict(manuscript_sha256=MANUSCRIPT_SHA256,python=platform.python_version(),source_sha256=digest(Path(__file__)),
module_sha256={n:digest(here/n) for n in ['source.py','observation.py','certificates.py']},output_sha256={p.name:digest(p) for p in sorted(out.iterdir()) if p.is_file() and p.name!='run_metadata.json'}))
def plot(out,curves,simulations,selection,blocks):
import matplotlib
matplotlib.use('Agg')
import matplotlib.pyplot as plt

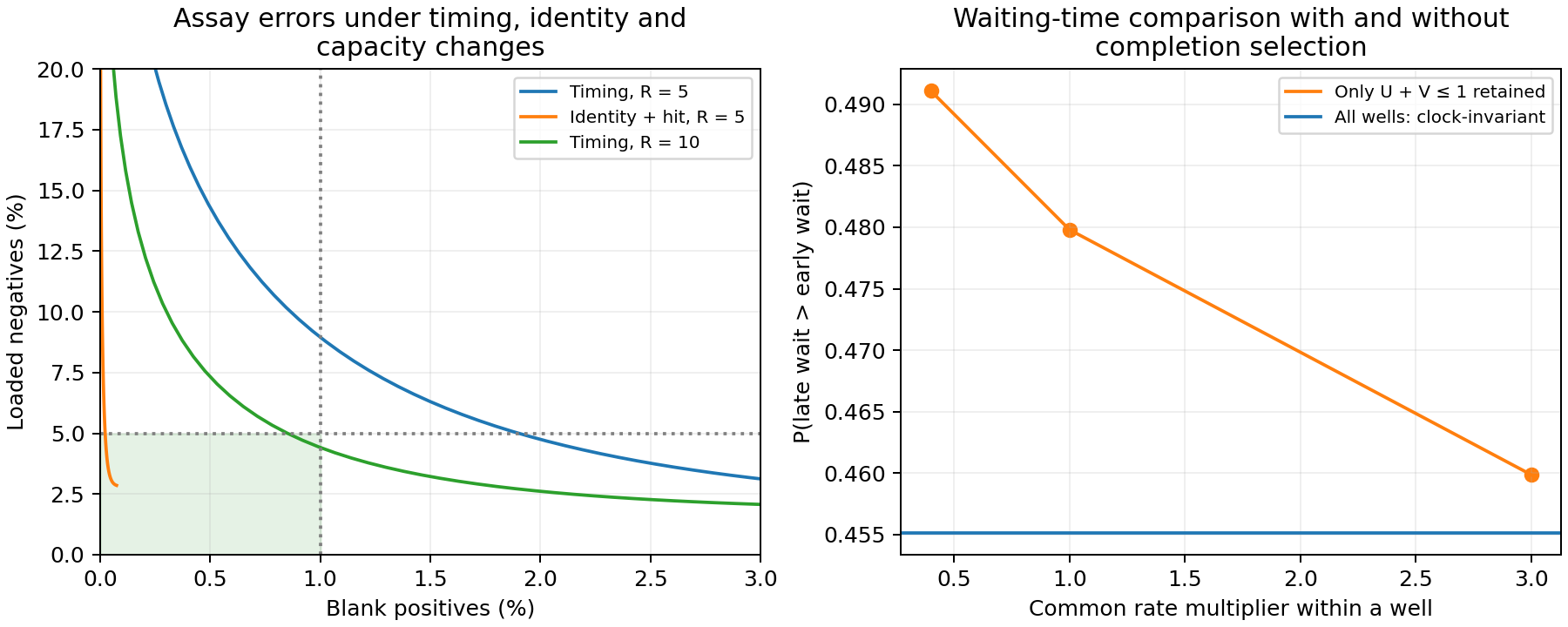

data=np.array(curves);fig,axs=plt.subplots(1,2,figsize=(10,4),layout='constrained')
for b,m,label in [(1,2,'Timing, R = 5'),(3,4,'Identity + hit, R = 5'),(5,6,'Timing, R = 10')]:
axs[0].plot(100*data[:,b],100*data[:,m],label=label)
axs[0].axvline(1,color='gray',ls=':');axs[0].axhline(5,color='gray',ls=':');axs[0].fill_between([0,1],0,5,color='green',alpha=.1)
axs[0].set(xlim=(0,3),ylim=(0,20),xlabel='Blank positives (%)',ylabel='Loaded negatives (%)',title='Assay errors under timing, identity and\ncapacity changes');axs[0].legend(fontsize=8)
for r in selection:axs[1].scatter(r['clock'],r['selected'],color='tab:orange')
axs[1].plot([r['clock'] for r in selection],[r['selected'] for r in selection],label='Only U + V ≤ 1 retained',color='tab:orange')
axs[1].axhline(selection[0]['unselected'],label='All wells: clock-invariant',color='tab:blue')
axs[1].set(xlabel='Common rate multiplier within a well',ylabel='P(late wait > early wait)',title='Waiting-time comparison with and without\ncompletion selection');axs[1].legend(fontsize=8)
for ax in axs:ax.grid(alpha=.2)
fig.savefig(out/'decisions.png',dpi=180);fig.savefig(out/'decisions.svg');plt.close(fig)

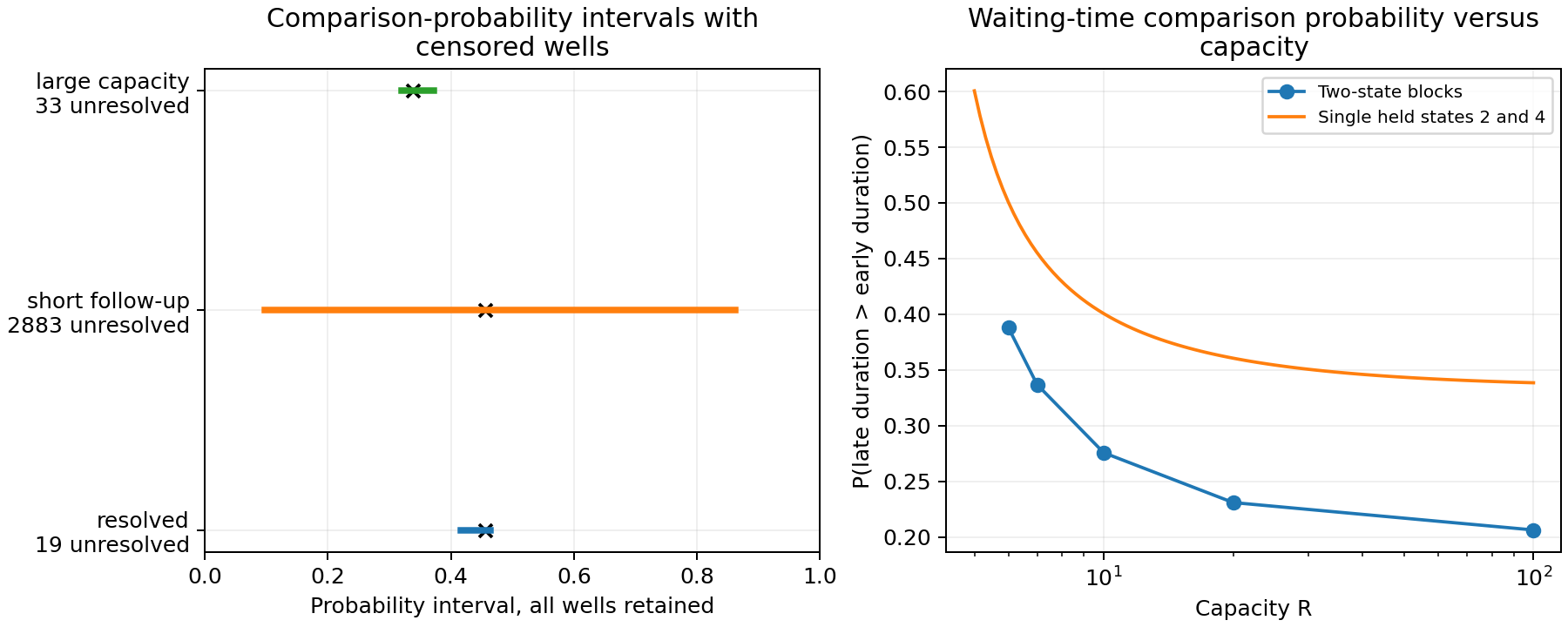

fig,axs=plt.subplots(1,2,figsize=(10,4),layout='constrained')
labels=[]
for i,r in enumerate(simulations):
p=list(map(float,r['probability_interval']));axs[0].plot(p,[i,i],lw=3);axs[0].scatter([float(PairedCapacity(F(CAPACITY_A),EARLY_STATE,LATE_STATE).probability(r['true_capacity']))],[i],marker='x',color='k')
labels.append(r['name']+'\n'+str(r['unknown'])+' unresolved')
axs[0].set_yticks(range(len(labels)),labels);axs[0].set(xlim=(0,1),xlabel='Probability interval, all wells retained',title='Comparison-probability intervals with\ncensored wells')
axs[1].plot([r['capacity'] for r in blocks],[float(r['probability']) for r in blocks],'o-',label='Two-state blocks')
model=PairedCapacity();x=np.geomspace(5,100,100);axs[1].plot(x,[float(model.probability(F(str(v)))) for v in x],label='Single held states 2 and 4')
axs[1].set(xscale='log',xlabel='Capacity R',ylabel='P(late duration > early duration)',title='Waiting-time comparison probability versus\ncapacity');axs[1].legend(fontsize=8)
for ax in axs:ax.grid(alpha=.2)
fig.savefig(out/'capacity.png',dpi=180);fig.savefig(out/'capacity.svg');plt.close(fig)
if __name__=='__main__':main()
Run output
User source: numerical best deadline 4.459373; miss 8.956569%. Reference R=h=5: exact separating witness excludes every timing-only rule under the manuscript theorem. Reference identity rule, fixed-rate uncertainty: blank <= 0.00030848; miss <= 0.04370698. Reference capacity-ten fixed-rate window: usable. Calibrated signal 1110: 909,091..1,133,333 possible active units. resolved: 1752/2229/19 positive/negative/unresolved; finite interval. short follow-up: 478/639/2883 positive/negative/unresolved; lower bound. large capacity: 1367/2600/33 positive/negative/unresolved; lower bound. Synthetic fixtures and supplied contracts only; timing-only optimality and large-threshold source connections are manuscript theorems.
